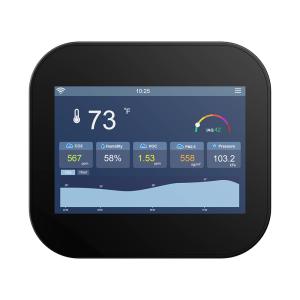

Professional IAQ Monitor with Touch Interface and Flexible Communication Support
Enhance your indoor air quality strategy with the Professional IAQ Monitor, engineered for precision, integration, and ease of use. This high-performance monitor features a responsive touchscreen interface paired with multi-protocol communication support, making it the perfect solution for smart buildings, industrial facilities, educational campuses, and healthcare environments.
The device offers real-time monitoring of CO₂, PM2.5, VOCs, Pressure, temperature, and humidity, delivering accurate insights through its vibrant, user-friendly display. Built for compatibility with modern automation systems, it supports WiFi, BACnet/IP, Modbus RTU/TCP, MQTT, and LoRaWAN, enabling seamless data sharing and integration with BMS, HVAC systems, and cloud-based platforms.
Key Features:
User-Friendly Touchscreen Display: Clear visualization of real-time IAQ data and historical trends
Flexible Communication Options: Supports WiFi, BACnet/IP, Modbus RTU/TCP, MQTT & LoRaWAN for broad integration
Comprehensive Air Quality Monitoring: Detects CO₂, PM2.5, VOCs, Pressure, temperature, and humidity with high accuracy
Built-In Data Logging: Stores environmental data locally with export capabilities for reporting and compliance
Customizable Smart Alerts: Instant warnings on screen or via network when air quality thresholds are exceeded
Industrial-Grade Versatility: Suitable for standalone use or as part of a complex automation system
Energy Efficient & Durable: Designed for 24/7 operation in commercial and industrial environments
24V Power Supply Support: Compatible with standard building automation power systems
| Power Supply | 24VAC |
| Display | 320x480 pixels color TFT Capacitive touch |
| LoRaWAN | 868mHz/923mHZ/915mHZ |
| WiFi | IEEE 802.11b/g/n-2.4ghz |
| BACnet | MSTP/IP |
| Modbus | RTU/TCP |
| Security | WPA/WPA2 |
| Operating temperature | 1°C-85°C |
| Sensors | Co2: 0-5000ppm(±30ppm +3%MV) |
| Temperature:-10°C-70°C,(0.5 C 25 C) |
| Humidity:0-100%,±3% VOC: 0-60.000 ppb |
| Particulate Matter (PM1.5,PM2.5 PM4PM10): 4 KB0-100 μg/m3(±10μg/m3),100-1000(±10%) |
| Pressure: 50 to 115 kPa ±1 kPa |
| Communication | WiFi-MQTT, modbus TCP LoRaWan(Option) |
| BACnet MS/TP,IP(Option) Modbus RTU/TCP(Option) |
| Data protocals | MQTT |
| Device Configuration Using HTTP Download OTA Updates Via HTTP |
| NDIR life time | 15 Years |
| Standby power consumption | ≤0.5 W |
| Display dimensions | 76.5X52 mm(W/H) |
| Dimensions(W/H/D) | 96*86*32.5(mm) |
| Weight | ≤200g |
| Enclosure rating | IP 21 |
| Product material | PC+ ABS plastic |
