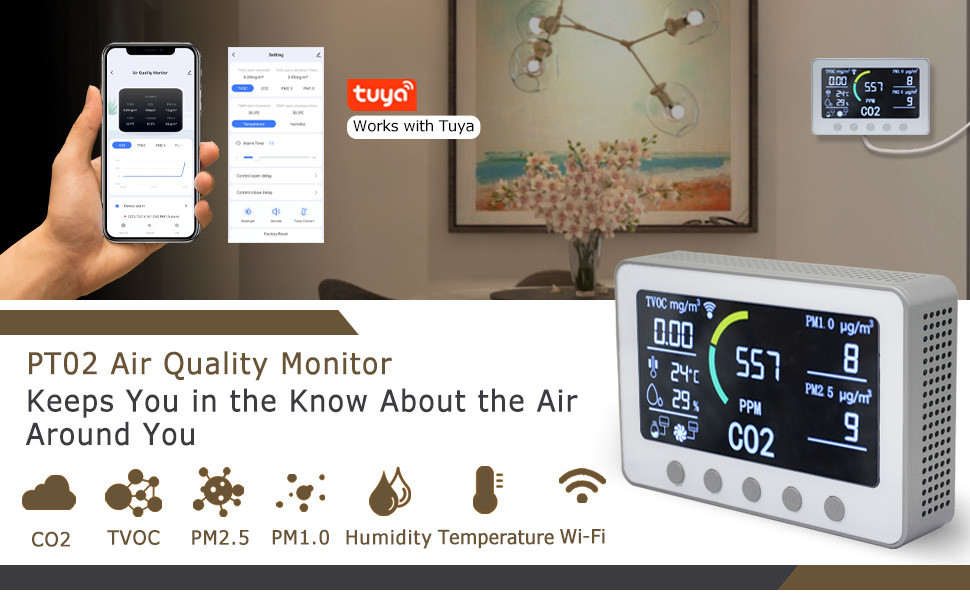

Advanced IAQ Sensor with Relay & Analog Output for Automation
Elevate your environmental control strategy with the Advanced IAQ Sensor, engineered for intelligent indoor air quality management and seamless automation. Designed for integration with smart building systems, this sensor provides real-time monitoring of CO₂, PM2.5, PM1.0, TVOCs, temperature, and humidity, with precision-grade sensors and dynamic response capabilities.
Equipped with programmable relay outputs and analog outputs (0–10V / 4–20mA), the sensor can automatically trigger ventilation, air purification, alarms, or HVAC system adjustments based on air quality thresholds. Built for compatibility with BMS, HVAC, and industrial control systems, it also features RS485 (Modbus RTU) communication for smooth data exchange and system-wide optimization.
Key Features:
Comprehensive IAQ Monitoring: Tracks CO₂, PM2.5, PM1.0, TVOCs, temperature, and humidity

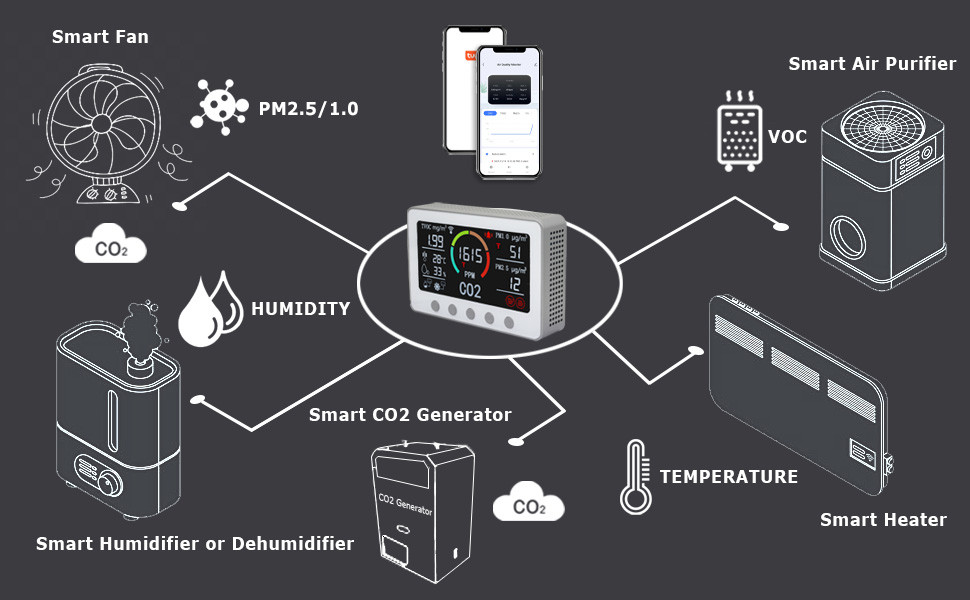

Relay & Analog Outputs: Control fans, dampers, purifiers, or alarms automatically
RS485 Modbus Integration: Easy connection to building management and automation systems
Flexible Output Configuration: Supports 0–10V or 4–20mA analog signals for proportional control
Custom Threshold Settings: Trigger outputs when defined pollutant levels are exceeded.
| Product Name | Smart Air Quality Monitor |
| Model No. | PT02 |
| Color | Silver/Black/White |
| Temperature Measurement Range | -20°℃~60℃;±2℃ |
| Humidity Measurement Range | 5%~95%RH;±5%RH |
| Co2 Measurement Range | 400-5000ppm |
| Co2 Resolution | 1ppm |
| Co2 Accuracy | ±50ppm or ±5% of reading |
| TVOC Measurement Range | 0~20mg/m3 |
| TVOC Resolution | 1PPB |
| TVOC Accuracy | Consistency level<1Grade |
| PM1.0 Measurement Range | 0~500μg/m3 |
| PM1.0 Resolution | 1μg/m3 |
| PM1.0 Accuracy | 15μg/m3 or ±15% of reading |
| PM2.5 Measurement Range | 0~500μg/m3 |
| PM2.5 Resolution | 1μg/m3 |
| PM2.5 Accuracy | ±10μg/m3 or ±10% of reading |
| WorkingTemperature | 0°-50℃ |
| Working humidity | 0-95%(non-condensing) |
| Input Voltage | DC 12V/2A |
| Product Weight | 1120G(Include package) |
| Product Size | 180mm(L)*39mm(W)*119mm(H) |

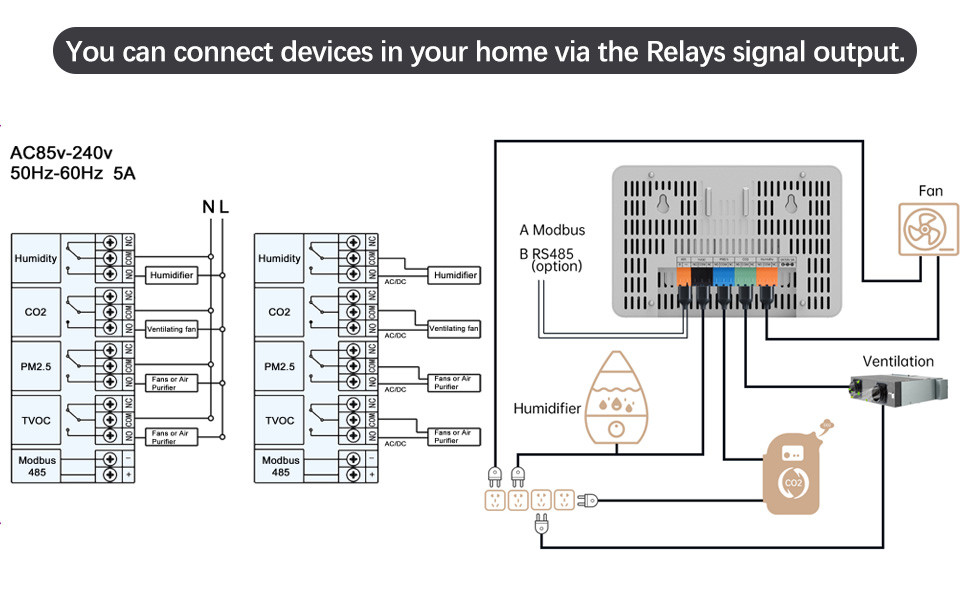

| Single Output wiring | RS485/Relays for CO2TVOC, PM2.5,and Humidity signal output |
